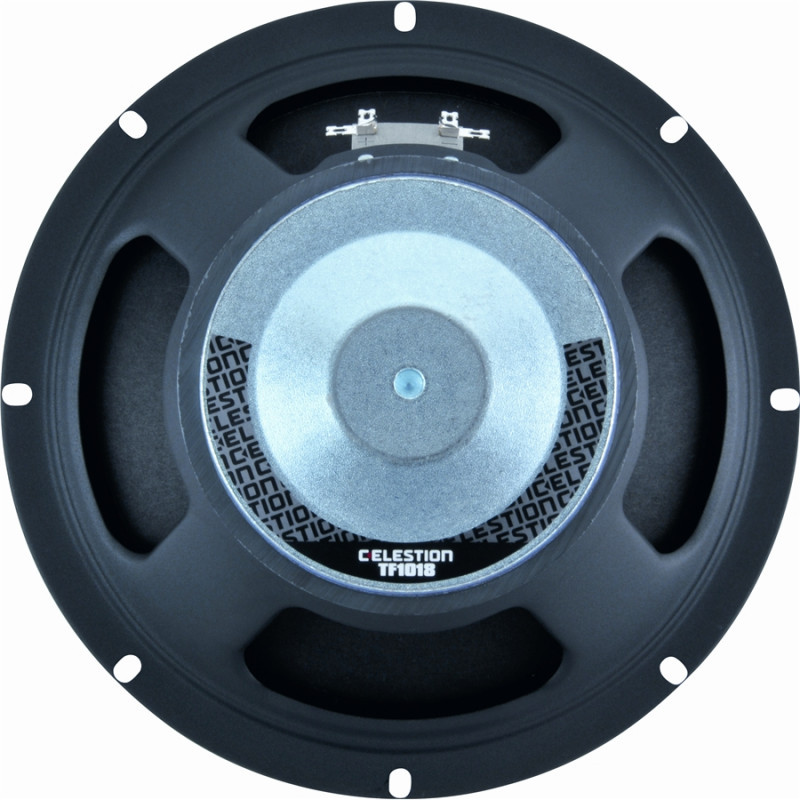

TF1018 100W 8ohm LF Ferrite

Caratteristiche

- 10" driver providing 96dB sensitivity and 100Wrms (AES standard) power handling

- 1.75" high temperature copper voice coil wound on polyimide for increased reliability

- Superior bass and mid-range performance

- Rigid chasis design for maximum energy transfer

- Vented magnet assembly for enhanced cooling

- Excellent price/performance ratio

Specifiche Generali

Nominal diameter: 254mm/10in

Power rating(1): 100Wrms

Continuous power rating(2): 200W

EIA power rating(3): 150W

Nominal impedance: 8ohm

Sensitivity(4): 96dB

Frequency range: 70-6000Hz

Voice coil diameter: 45mm/1.75in

Chassis type: Pressed steel

Magnet type: Ferrite

Magnet weight: 0.88kg/31oz

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 2mm/0.08in

Gap depth: 6mm/0.24in

Voice coil winding width: 10mm/0.39in

Parametri di Thiele-Small

D: 0.21m/8.27in

Fs: 79.8Hz

Mms: 28.31g/0.99oz

Qms: 3.381

Qes: 0.624

Mmd: 24.67g/0.87oz

Qts: 0.527

Re: 5.73ohm

Vas: 23.84lt/0.841ft3

BI: 11.42Tm

Cms: 0.14mm/N

Rms: 4.199kg/s

Le (at 1kHz): 0.54mH

Informazioni di Montaggio

Overall diameter: 256mm/10.08in

Overall depth: 102mm/4.02in

Cut-out diameter: 229mm/9.02in

Mounting slot dimensions: 8mm x 6mm/0.31in x 0.24in

Number of mounting slots: 4

Mounting PCD range: 245mm/9.65in

Unit weight: 2.4kg/5.3lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
