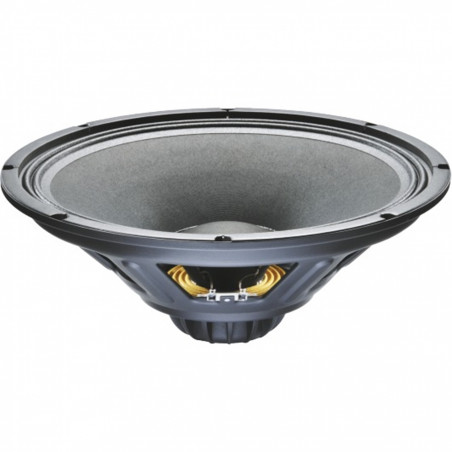

TN1230 300W 8ohm LF Neodimio

Caratteristiche

- 12" Bass and mid-range speaker driver unit provides 300Wrms (AES standard) power handling and 97dB sensitivity

- 3" high-temperature copper voice coil wound on polyimide for increased reliability

- FEA optimised neodymium magnet assembly design for lower weight and reduced harmonic distortion

- "M-Roll" surround provides progressive excursion control yielding a smooth response curve at extremes of frequency range

- Kevlar-loaded cone with sealed surround and damping contributes to lower distortion

- Rigid chassis design for maximum energy transfer

Specifiche Generali

Nominal diameter: 305mm/12in

Power rating(1): 300Wrms

Sensitivity(2): 97dB

Nominal impedance: 8ohm

Frequency range: 50-4000Hz

Voice coil diameter: 75mm/3in

Chassis type: Pressed steel

Magnet type: Neodymium

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(3): 3.75mm/0.148in

Gap depth: 10mm/0.39in

Voice coil winding width: 17.5mm/0.69in

Parametri di Thiele-Small

D: 0.26m/10.24in

Fs: 54.8Hz

Mms: 56.11g/1.98oz

Qms: 3.11

Qes: 0.30

Mmd: 49.19g/1.74oz

Qts: 0.28

Re: 5.33ohm

Vas: 59.86lt/2.11ft3

BI: 18.45Tm

Cms: 0.15mm/N

Rms: 6.22kg/s

Le (at 1kHz): 0.94mH

Informazioni di Montaggio

Overall diameter: 309mm/12.17in

Overall depth: 132mm/5.20in

Cut-out diameter: 283mm/11.14in

Mounting slot dimensions: Ø7.9mm/0.31in

Number of mounting slots: 4

Mounting PCD range: 297mm/11.69in

Unit weight: 2.0kg/4.4lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.

Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Rating is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m in 2pi anechoic environment.

(4)Xmax derived from: (voice coil winding width-gap depth)/2.

(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
