Riferimento: 15300044
Marca: Celestion
AN2775 20W 8ohm Compact Full Range
AN2775 20W 8ohm Compact Full Range
Caratteristiche

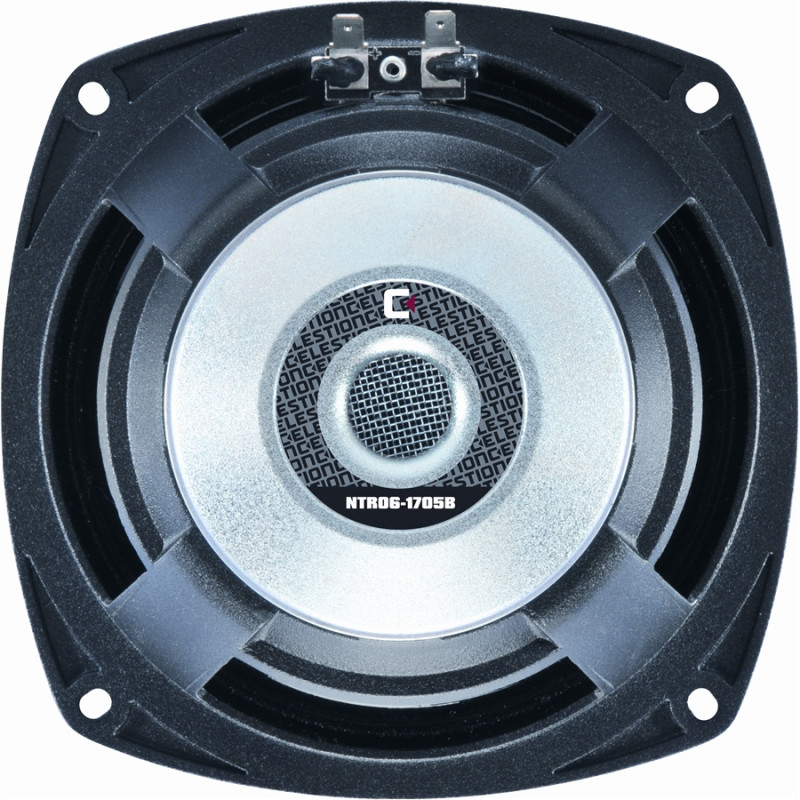

- 6.5" neodymium magnet mid-range driver providing 150Wrms (AES standard) power handling and 95dB sensitivity
- 1.75" high temperature copper clad aluminium voice coil
- Suitable for line array applications, utilising a space efficient chassis profile
- FEA optimised flux distribution in the magnet assembly provides low harmonic distortion
- "M-Roll" surround provides progressive excursion control, generating a smooth frequency response
- Intelligent heat management in both chassis and magnet assembly design offers reduced thermal distortion
Specifiche Generali
Nominal diameter: 165mm/6.5in
Power rating(1): 150Wrms
Nominal impedance: 8ohm
Sensitivity(2): 95dB
Frequency range: 150-7000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Copper clad aluminium
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 2.5mm/0.098in
Gap depth: 6mm/0.24in
Voice coil winding width: 11mm/0.43in
Parametri di Thiele-Small
D: 0.13m/5.12in
Fs: 109.6Hz
Mms: 12.934g/0.457oz
Qms: 2.632
Qes: 0.527
Mmd: 12.069g/0.422oz
Qts: 0.439
Re: 5.95ohm
Vas: 4.06lt/0.14ft3
BI: 10.03Tm
Cms: 0.163mm/N
Rms: 3.385kg/s
Le (at 1kHz): 0.24mH
Informazioni di Montaggio
Overall diameter: Max 189mm/7.44in - Min 162mm/6.38in
Overall depth: 71mm/2.79in
Cut-out diameter: 150mm/5.9in
Mounting slot dimensions: 6.5mm x 5.5mm/0.26in x 0.22in
Number of mounting slots: 4
Mounting slot PCD range: 173.5mm/6.83in
Unit weight: 0.85kg/1.87lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
Per stampare la scheda prodotto, clicca qui
Per una panoramica su tutta la serie Celestion NTR Neodimio, clicca qui
Per consultare e scaricare la brochure originale Celestion Pro Audio, clicca qui
