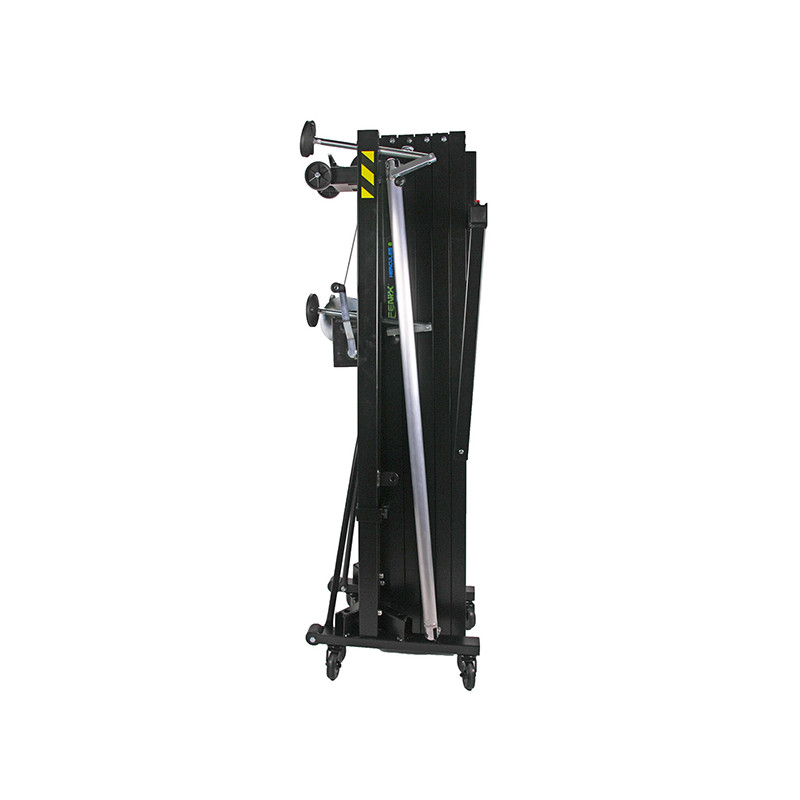

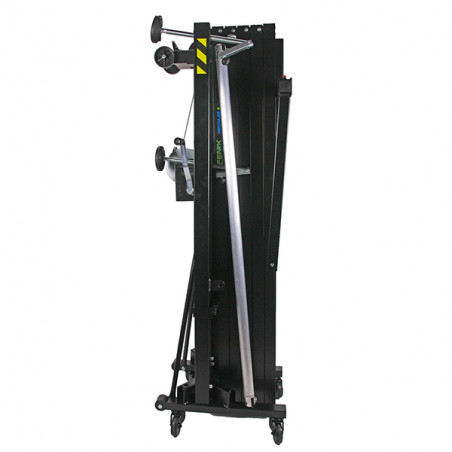

FENIX HERCULES 8 FRONTAL LOADING LIFTING TOWER

Super frontal loading lifting tower. HERCULES Series, powerful and easy to use.
Uses: For lifting line array systems, trussing or LED screens.

Features:
- All HERCULES towers lift the load from the floor and are height adjustable.
- Made of aluminium.
- Available colour: Black.

Technical specifications:
- Maxium height: 8m
- Height folded: 1,99m
- Maximum load: 300kg
- Minimum charge: 25kg
- Material: Aluminum alloy AL Si 6106 / T6
- Workspace: 2,50 x 2,28m
- Closed base area: 0,52 x 0,65m
- Weight: 203kg
- Winch: 1.700-WCH 1.700kg
- Cable: Galvanized steel under EN 12385-4.
- Maximum cable load: 2.000kg
- Cable twisting resistance : 1.770N/mm²
- Cable diameter: 6mm
- Cable composition: 7x19+0
- Security system: Inner pendulum and external trigger in sections.
- Leg attachment: Safety pins
- Bubble level: to vertically adjust the tower.
