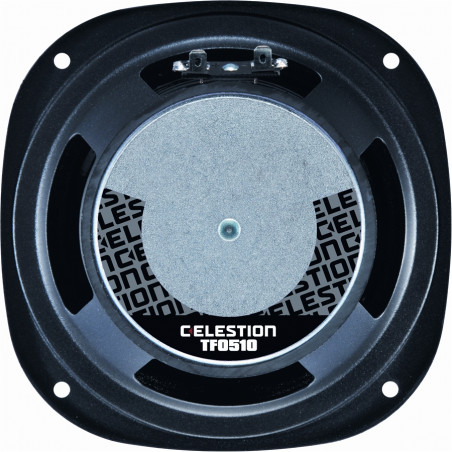

TF0510 30W 8ohm LF Ferrite

Caratteristiche

- Multi-purpose 5" drive unit delivering clear bass and mid frequencies

- Provides 91dB sensitivity and 30Wrms (AES standard) power handling

- 1" high temperature copper voice coil wound on polyimide former for increased reliability

- Impressive extended frequency range

- Ideal for use in multiple speaker systems: as LF driver in 2-way systems, as MF driver in 3-way systems

Specifiche Generali

Nominal diameter: 127mm/5in

Power rating(1): 30Wrms

Continuous power rating(2): 60W

EIA power rating(3): 50W

Nominal impedance: 8ohm

Sensitivity(4): 91dB

Frequency range: 130-8000Hz

Voice coil diameter: 25mm/1in

Chassis type: Pressed steel

Magnet type: Ferrite

Magnet weight: 0.37kg/13oz

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 1.1mm/0.04in

Gap depth: 5mm/0.20in

Voice coil winding width: 7.3mm/0.29in

Parametri di Thiele-Small

D: 0.10m/3.94in

Fs: 106Hz

Mms: 5.7g/0.201oz

Qms: 2.40

Qes: 0.58

Mmd: 5.3g/0.187oz

Qts: 0.46

Re: 6.43ohm

Vas: 4.2lt/0.15ft3

BI: 6.5Tm

Cms: 0.40mm/N

Rms: 1.60kg/s

Le (at 1kHz): 0.38mH

Informazioni di Montaggio

Overall diameter: 136 x 151mm/5.35 x 5.94in

Overall depth: 68mm/2.68in

Cut-out diameter: 117mm/4.61in

Mounting slot dimensions: Ø 4.5mm/0.18in

Number of mounting slots: 4

Mounting PCD range: 140mm/5.51in

Unit weight: 1.0kg/2.2lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
