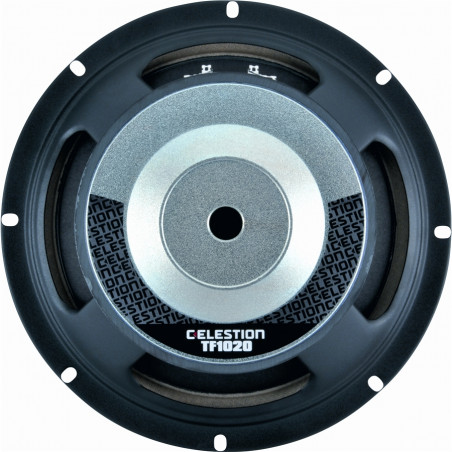

TF1020 150W 8ohm LF Ferrite

Voglia di audio Fai da Te? Per il progetto di un diffusore PA 10" compatto 2-vie, clicca qui

Design curato, collaudato e messo a disposizione direttamente da Celestion

Caratteristiche

- 10" bass and mid-range driver provides 97dB sensitivity and 150Wrms (AES standard) power handling

- 2" High temperature copper voice coil wound on polyimide for increased reliability

- Ideally suited to compact enclosures and high pass systems

- Rigid chasis design for maximum energy transfer

- Kevlar-loaded cone with sealed surround and damping for reduced distortion

Specifiche Generali

Nominal diameter: 254mm/10in

Power rating(1): 150Wrms

Continuous power rating(2): 300W

EIA power rating(3): 250W

Nominal impedance: 8ohm

Sensitivity(4): 97dB

Frequency range: 60-3000Hz

Voice coil diameter: 50mm/2in

Chassis type: Pressed steel

Magnet type: Ferrite

Magnet weight: 1.2kg/42oz

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 2mm/0.08in

Gap depth: 8mm/0.31in

Voice coil winding width:12mm/0.47in

Parametri di Thiele-Small

D: 0.21m/8.27in

Fs: 60.9Hz

Mms: 30.92g/1.09oz

Qms: 2.853

Qes: 0.361

Mmd: 27.27g/0.96oz

Qts: 0.32

Re: 5.79ohm

Vas: 37.45lt/1.32ft3

BI: 13.79Tm

Cms: 0.221mm/N

Rms: 4.15kg/s

Le (at 1kHz): 0.59mH

Informazioni di Montaggio

Overall diameter: 256mm/10.08in

Overall depth: 110mm/4.33in

Cut-out diameter: 229mm/9.02in

Mounting slot dimensions: 8mm x 6mm/0.31in x 0.24in

Number of mounting slots: 4

Mounting PCD range: 245mm/9.65in

Unit weight: 3.7kg/8.2lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
