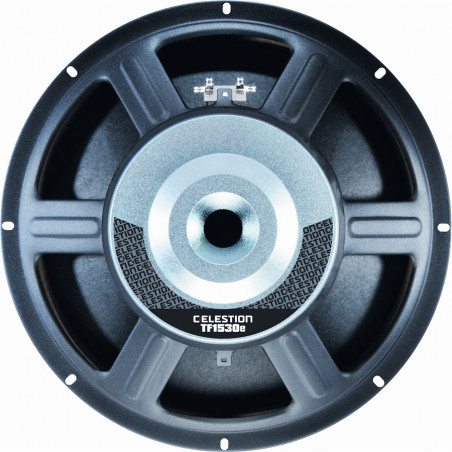

TF1530e 400W 8ohm LF Ferrite

Voglia di audio Fai da Te? Per il progetto di un Sub bass-reflex passivo da 15", clicca qui

Design curato, collaudato e messo a disposizione direttamente da Celestion.

Caratteristiche

- 15" driver provides extended low frequency range

- 3" edgewound voice coil enables 98dB efficiency and 400Wrms (AES standard) power handling

- Vented magnet assembly for enhanced cooling

- Kevlar-loaded cone with sealed surround and damping for reduced distortion

- Suitable for use in 2-way and 3-way systems

Specifiche Generali

Nominal diameter: 381mm/15in

Nominal impedance: 8ohm

Frequency range: 40-3000Hz

Voice coil diameter: 75mm/3in

Chassis type: Pressed Steel

Magnet type: Ferrite

Coil material: Flat CCA

Former material: Glass Fibre

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Gap depth: 8mm/0.31in

Voice coil winding width: 17mm/0.67in

Parametri di Thiele-Small

D: 0.33m/12.99in

Fs: 40.9Hz

Mms: 86.24g/3.04oz

Qms: 4.073

Qes: 0.376

Mmd: 72.09g/2.54oz

Qts: 0.344

Re: 5.09ohm

Vas: 181.72 lt/6.41ft3

BI: 17.318Tm

Cms: 0.176mm/N

Rms: 5.433kg/s

Le (at 1kHz): 0.827mH

Informazioni di Montaggio

Overall diameter: 385mm/15.16in

Overall depth: 161mm/6.34in

Cut-out diameter: 352mm/13.86in

Mounting slot dimensions: 9.4x6.2mm/0.37x0.24in

Number of mounting slots: 8

Mounting PCD range: 369mm/14.57in

Unit weight: 6.5kg/14.3lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.

Power calculated on minimum impedance.

Loudspeaker tested in free air.

(2)Continuous Power Rating is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
