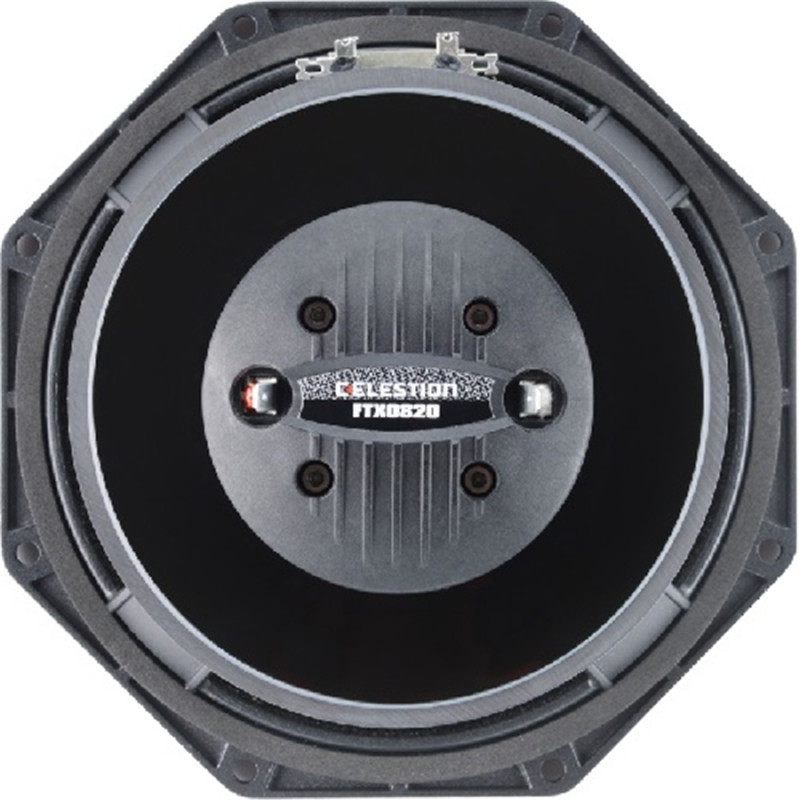

FTX0820 200W 8ohm Coaxial

Caratteristiche

- 8" coaxial loudspeaker providing 200Wrms (AES standard) power handling and 94dB sensitivity

- Full range frequency response: 70 - 20,000Hz

- FEA (Finite Element Analysis) optimized ferrite magnet assembly acts as common motor for both LF and HF drivers resulting in enhanced coherence

- Robust cast aluminium chassis is designed to minimize unwanted reflections, further reducing acoustic distortion

- Demodulation ring reduces flux modulation, minimizing electromagnetic distortion

- 2" edgewound copper voice coil wound on high temperature glass fibre former

- 100° nominal HF coverage

Specifiche Generali

Power rating(1): 200Wrms

Nominal impedance: 8ohm

Sensitivity(2): 94dB

Frequency range: 70-4000Hz

Voice coil diameter: 50mm/2in

Chassis type: Cast Aluminium

Magnet type: Ferrite

Magnet weight: 1.5kg/54oz

Coil material: Edgewound copper

Former material: Glass fibre

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(3): 2mm/0.08in

Gap depth: 8mm/0.31in

Voice coil winding width: 12mm/0.47in

Parametri di Thiele-Small

D: 0.17m/6.69in

Fs: 63.9Hz

Mms: 21.12g/0.75oz

Qms: 4.709

Qes: 0.242

Mmd: 19.19g/0.68oz

Qts: 0.231

Re: 5.9ohm

Vas: 21.38lt/0.75ft3

BI: 14.4Tm

Cms: 0.238mm/N

Rms: 1.802kg/s

Le (at 1kHz): 0.84mH

Specifiche Generali HF

Power rating(1): 40Wrms

Nominal impedance: 8ohm

Sensitivity(2): 103dB

Frequency range: 1500-20,000Hz

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 34mm/1.4in

Diaphragm and surround material: Polyimide

Informazioni di Montaggio

Overall depth: 114mm/4.49in

Cut-out diameter: 187mm/7.36in

Mounting slot dimensions: Ø6.5mm/0.26in

Number of mounting slots: 8

Mounting PCD range: 210mm/8.27in

Unit weight: 4.1kg/9.0lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Measured on axis at 1W, 1m in 2pi anechoic environment.

(3)Xmax derived from: (voice coil winding width-gap depth)/2.

Fornito senza Crossover
