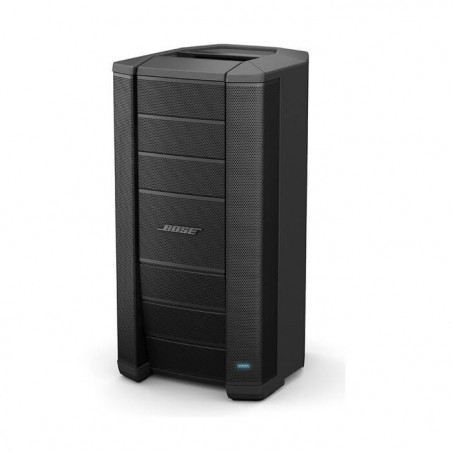

BOSE F1 MODEL 812 - DIFFUSORE AD ARRAY VARIABILE 1000W

System Performance:
System Type Self powered, two-way
Frequency Response (–3 dB) 52 Hz - 15.5 kHz
Frequency Range (–10 dB) 43 Hz - 20 kHz
Nominal Dispersion 100° H x 40° V (C-position)
Maximum SPL @ 1 m 132 dB SPL (peak)
Crossover Frequency 600 Hz Acoustic 4th order Butterworth

Amplification:
System Power 1000 W
Distortion at Rated Power 0.1 % Max (30 Hz - 15 kHz)
System Limiter Dynamic limiter
Power Indicator Blue LED: system on

Transducers:
Driver Compliment 8 x 2.25" mid-high drivers' 1 x 12" LF

Channels:
Signal Indicators POWER/FAULT, LIMIT, FRONT LED, SIGNAL INPUT
Input Connections Channel 1: XLR Balanced: Pin 1 (GND), Pin 2 (+), Pin 3 (-) Channel 2: 1/4” TS/TRS, 1/8” TS/TRS, (2) RCA
Controls Volume level, Signal input select, Front LED function select, EQ select, Power on/off

Additional Connections:
Line Output XLR balanced
AC Mains IEC Connector

Physical:
Enclosure High impact composite materials
Grille Powder-coated perforated steel grille
Dimensions 26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)
Net Weight 44.5 lbs (20.18 kg)

Power Supply Voltages:
Universal AC power rating: 100-240 V 50 / 60 Hz +/- 20 %, 200 W max
