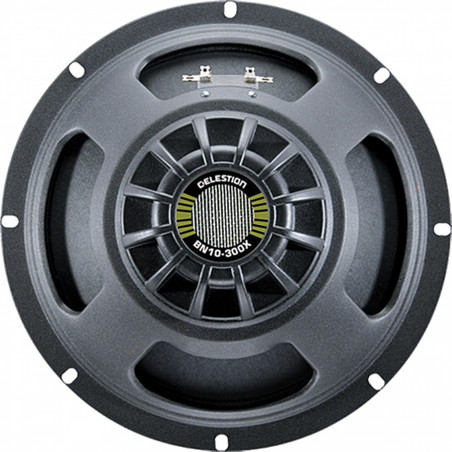

Bass Neodimio BN10-300X 300W 4ohm

Specifiche Generali

Nominal diameter: 10", 254mm

Power rating: 300W

Nominal impedance: 4ohm

Sensitivity: 96dB

Magnet type: Neodymium

Voice coil diameter: 2.5", 63.5mm

Coil material: Copper

Cone material: Kevlar loaded paper

Former material: Polyimide

Surround material: Cloth-sealed

Frequency range: 40-2500Hz

Xmax: 0.15", 4mm

Gap depth: 0.31", 8mm

Voice coil winding width: 0.62", 16mm

Parametri di Thiele-Small

D: 0.21m/8.3in

Fs: 64.2Hz

Mms: 35.81g/1.26oz

Qms: 3.33

Qes: 0.5

Mmd: 32.16g/1.14oz

Qts: 0.43

Re: 3.03ohm

Vas: 29.2lt/1.03cu.ft.

BI: 9.39Tm

Cms: 0.17mm/N

Rms: 4.34kg/s

Le (at 1kHz): 0.32mH

Informazioni di Montaggio

Cut-out diameter: 9", 229mm

Diameter: 10.1", 256mm

Mounting slot dimensions: 0.24x0.31", 6x8mm

Mounting slot PCD: 9.6", 245mm

Number of mounting slots: 4

Overall depth: 4.4", 112mm

Unit weight: 3.5lb, 1.6kg
