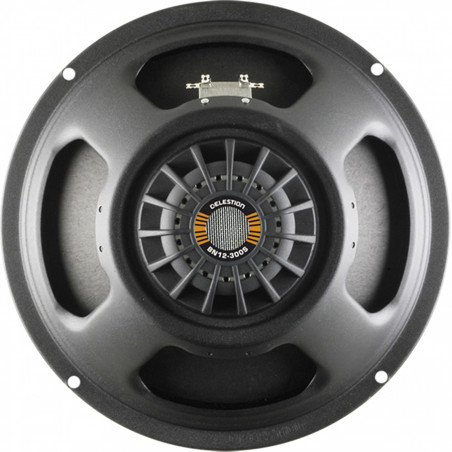

Bass Neodimio BN12-300S 300W 4ohm

Specifiche Generali

Nominal diameter: 12", 304.8mm

Power rating: 300W

Nominal impedance: 4ohm

Sensitivity: 99dB

Magnet type: Neodymium

Voice coil diameter: 2.5", 63.5mm

Coil material: Copper

Cone material: Kevlar loaded paper

Former material: Polyimide

Surround material: Cloth-sealed

Frequency range: 50-4000Hz

Xmax: 0.098", 2.5mm

Gap depth: 0.31", 8mm

Voice coil winding width: 0.51", 13mm

Parametri di Thiele-Small

D: 0.26m/10.2in

Fs: 51.4Hz

Mms: 48.31g/1.7oz

Qms: 3.64

Qes: 0.395

Mmd: 41.39g/1.46oz

Qts: 0.356

Re: 2.72ohm

Vas: 80.6lt/2.85cu.ft.

BI: 10.37Tm

Cms: 0.198mm/N

Rms: 4.296kg/s

Le (at 1kHz): 0.26mH

Informazioni di Montaggio

Cut-out diameter: 11.1", 283mm

Diameter: 12.2", 309mm

Mounting slot dimensions: 0.31", 7.9mm

Mounting slot PCD: 11.7", 297mm

Number of mounting slots: 4

Overall depth: 5.2", 132mm

Unit weight: 4.4lb, 2.0kg
