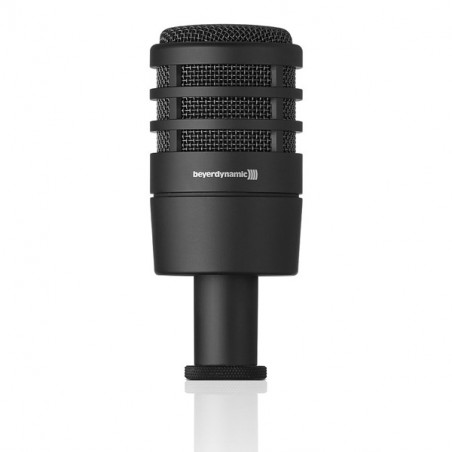

BEYERDYNAMIC TGD70D

TG D70 d Dynamic mic for bass /kick drums. Hypercardioid

Switchable filter settings, incl. mic. clamp and padded pouch
Technical Specifications



Transducer type . . . . . . . . . . . . . . . . . Dynamic

Operating principle. . . . . . . . . . . . . . . Pressure gradient

Polar pattern . . . . . . . . . . . . . . . . . . . Hypercardioid





Frequency response



Close miking . . . . . . . . . . . . . . . . . . . 20 - 18,000 Hz

Distant miking (measured at 1 m) . . . 40 - 18,000 Hz

Open circuit voltage . . . . . . . . . . . . . . 2.0 mV/Pa (-54 dBV) ±2.5 dB

Nominal impedance . . . . . . . . . . . . . . 280 O

Load impedance. . . . . . . . . . . . . . . . . = 1 kO



Connection . . . . . . . . . . . . . . . . . . . . 3-pin XLR connector, male

Length . . . . . . . . . . . . . . . . . . . . . . . . 128.5 mm

Shaft diameter . . . . . . . . . . . . . . . . . . 23/25 mm

Head diameter . . . . . . . . . . . . . . . . . . 56 mm

Weight (without cable). . . . . . . . . . . . 365 g
