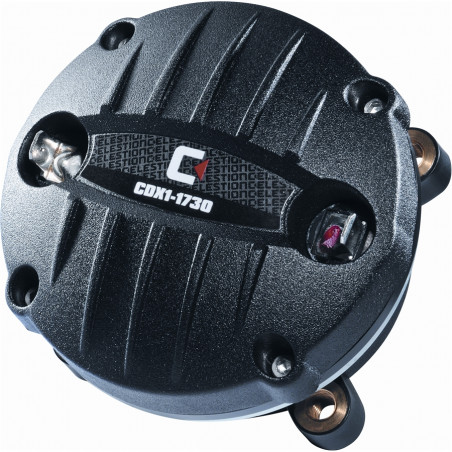

CDX1-1730 40W 8ohm HF Neodimio

Caratteristiche

- 1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil

- 40Wrms (AES standard) power handling and 110dB sensitivity

- Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion

- One piece PETP film diaphragm and surround

- Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver

Specifiche Generali

Power rating(1): 40Wrms

Continuous power rating(2): 80W

Nominal impedance: 8ohm

Sensitivity(3): 110dB

Frequency range: 1200-20,000Hz

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 44mm/1.75in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Neodymium

Diaphragm material: PETP film

Surround material: PETP film

Informazioni di Montaggio

Maximum width: 88.5mm/3.48in

Minimum width: 82.0mm/3.23in

Depth: 55mm/2.2in

Weight: 0.65kg/1.4lb

Fitting: Flange (4 x M6 holes on 76mm/3in PCD)

Throat exit: 25.4mm/1in

Trombe Compatibili

H1-9040P, H1-7050 "No Bell"

Note

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
