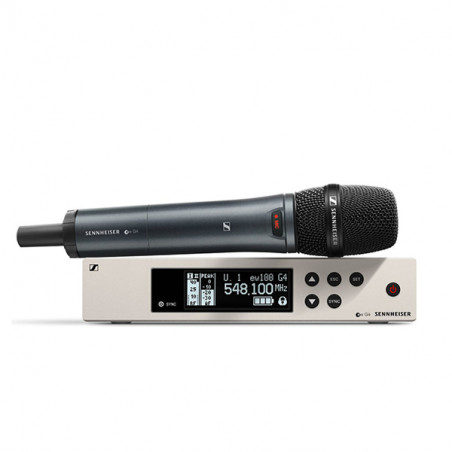

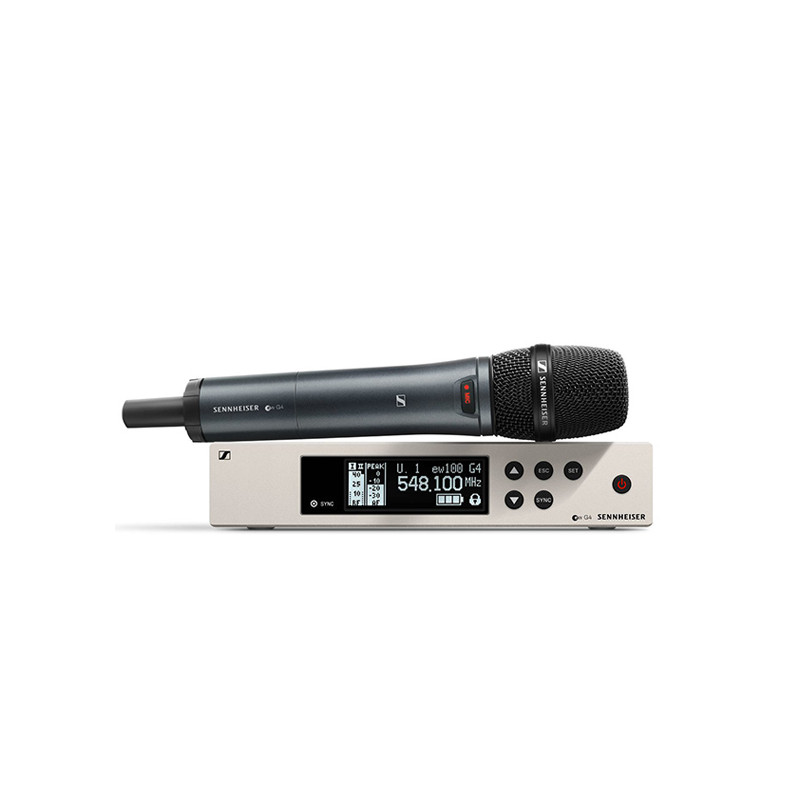

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. State-of-the-art live sound featuring Sennheiser‘s renowned e 935 and e 945 capsules on a lightweight aluminum transmitter with integrated mute switch.
Features: - Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters. - State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch - True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control - Easy and flexible wireless synchronization between transmitter and receiver via infrared - Fast frequency allocation for up to 12 receivers via new linking functionality - Up to 20 compatible channels - Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range - Transmission Range: up to 100 meters / 300 feet - High RF output power (up to 30 mW) depending on country regulations
What's in the box? - EM 100 G4 true diversity receiver - SKM 100 G4-S handheld transmitter - MMD 935-1 microphone head (935-S variants only) - MMD 945-1 microphone head (945-S variants only) - GA 3 rackmount set - MZQ 1 microphone clamp - power supply - 2 AA batteries - 2 rod antennas - RJ 10 cable - quick guide - safety guide - manufacturer declaration sheet - frequency supplement sheet
Technical Data:
EM 100 G4: - Frequency range B: 626 - 668 MHz - Dimensions Approx. 190 x 212 x 43 mm - Compander Sennheiser HDX - THD, total harmonic distortion = 0.9 % - Weight Approx. 980 g - Audio output 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu - Signal-to-noise ratio = 110 dBA - Switching bandwidth up to 42 MHz - Peak deviation ±48 kHz - Nominal deviation ±24 kHz - Modulation Wideband FM - Power supply 12 V DC - Antenna connector 2 BNC sockets - Current consumption 300 mA - Adjacent channel rejection Typically = 65 dB - Intermodulation attenuation Typically = 65 dB - Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels - RF sensitivity < 2.5 µV for 52 dBA eff S/N - Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBµV - Equalizer Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz) - Temperature Range -10 °C to +55 °C - Receiver Principle True diversity - Blocking = 70 dB
SKM 100 G4-S: - Dimensions Approx. Ø 50 x 265 mm - Compander Sennheiser HDX - THD, total harmonic distortion = 0.9 % - Weight (incl. batteries) approx. 450 g - Signal-to-noise ratio = 110 dBA - RF output power Max. 30 mW - Switching bandwidth up to 42 MHz - Peak deviation ±48 kHz - Nominal deviation ±24 kHz - Operating time Typically 8 h - Modulation Wideband FM - Power supply 2 AA batteries, 1.5 V or BA 2015 accupack - Current consumption at nominal voltage: typ. 180 mA, with transmitter switched off: = 25 µA - Input impedance 40 kO - Max. Input voltage 3 Veff - Powering 3 V battery / 2.4 V rechargeable battery - Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels - AF frequency response 80 – 18,000 Hz - Temperature Range -10 °C to +55 °C - Frequency stability = ±15 ppm
