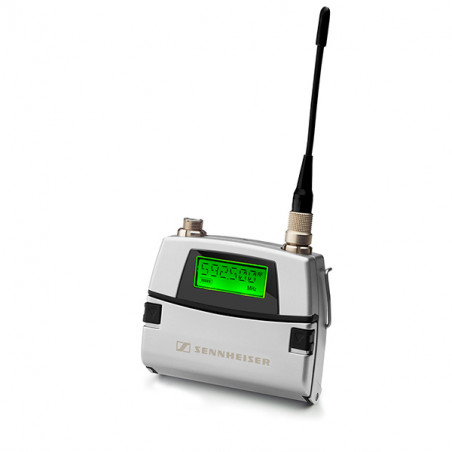

SENNHEISER SK 5212-II SUPERIOR VERSATILE BODYPACK TRANSMITTER

Superior versatile bodypack transmitter with extended switching bandwidth of up to 184 MHz. "Low Intermodulation Mode“ for increased interference immunity, especially during multi-channel operation. Compact, robust housing.

The SK 5212-II bodypack transmitter combines reliability and diversity in a very small housing. Its compact design makes the transmitter inconspicuous and comfortable to wear. The new extended switching bandwidth of up to 184 MHz provides extra flexibility. The transmission power can be adjusted to improve transmission duration while meeting regional regulations. Also new: the Low Intermodulation Mode ("LoI") increases interference immunity, especially during multi-channel operation. An input sensitivity range of -30 dB to +40 dB makes the transmitter suitable for use in quiet interview situations as well as with very powerful singing voices in musicals.

Its menu-driven user interface with backlit LCD is remarkably simple and intuitive. With its extensive power spectrum, the low power consumption of the SK 5212-II is particularly impressive: one alkaline manganese battery (Mignon/AA) lasts for at least 5 1/2 hours of operation.

The SK 5212-II is available in L, N and P frequency variants.

Features:
- Up to 184 MHz switching bandwidth
- Switchable output power
- Very compact and rugged housing
- Audio sensitivity adjustable in steps of 1 dB from -30 to +40 dB
- 1 AA battery for at least 51/2 hrs od operating time
- Frequencies adjustable in steps of 5 kHz
- Jog dial for increased ease of use
- Switchable low-cut

What's in the box?
- 1 SK 5212-II bodypack transmitter
- 1 AA size battery,
- antennas for different frequency ranges,
- 1 belt clip
- 1 instruction manual
- 1 frequency table

Technical Data:
- Frequency response 606 - 790 MHz
- Dimensions 53 x 60 x 17 mm
- Frequency response (Microphone) 60 - 20000 Hz
- Compander HiDyn plus
- THD, total harmonic distortion < 0,3 %
- Storage temperature -25 °C à +70 °C
- Operating temperature -10 °C à +55 °C
- RF frequency range 470 - 866 MHz
- Number of channels Frequency bank "FIX" with up to 59 factory-preset frequencies
- Frequency bank "VAR" with 20 freely selectable frequencies (frequencies tunable in steps of 5 kHz)
- Peak deviation +/- 56 kHz
- Nominal deviation +/- 40 kHz
- Operating time PWR.LO: approx. 11h, PWR.HI: approx. 5,5h, PWR.LoI: approx. 5,5 h
- Power supply 1 AA battery
- Current consumption PWR.LO: approx. 150 mA, PWR.HI: approx. 220mA, PWR.LoI: approx. 220 mA
- Input voltage range 7,75 mV, sensitivity
- Dynamic range typ. 110 dB (A)eff
- High pass filter flat, 120 Hz switchable
