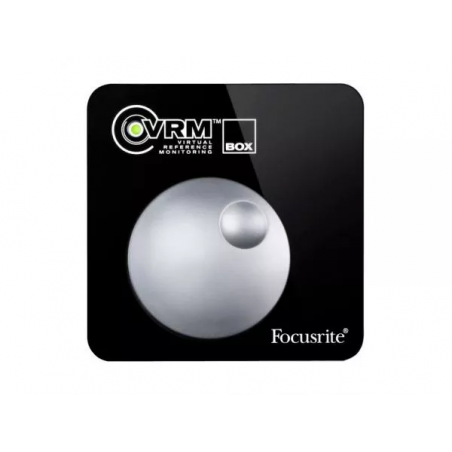

FOCUSRITE VRM

Specifiche tecniche

HEADPHONE OUTPUTS (OUTPUTS 1-2)

• Output impedance: < 10 Ω
• Power output into 150Ω: 15mW
• Power output into 50Ω: 30mW
• THD+N: -100dB (0.001%) (-1dBFS input, 20Hz/22kHz bandpass filter, 150Ω load)
• Signal to Noise Ratio: > 105dB
  S/PDIF DIGITAL INPUT
• Automatic Sample Rate conversion
• Supported sample rates: continuous from 32kHz to 192kHz
• THD+N: < -110dB any sample rate
  CROSSTALK (CHANNEL ISOLATION)
• Any output to output: > 100dB
  DIGITAL PERFORMANCE
• D/A Dynamic Range: 120dB (A-weighted)
• Measured D/A Dynamic Range: 108dB (A-weighted)
• Clock Source: Internal Clock only Clock jitter < 250 picoseconds
• Supported Sample Rates: 44.1kHz & 48kHz
• Input channels to computer: S/PDIF (stereo)
• Output channels from computer: Headphones (stereo)
  CONNECTORS AND CONTROLS
• Stereo S/PDIF input on RCA
• Stereo Headphone Output on 1⁄4” TRS
• Headphone Output Level control (analogue)
• 4-pin USB2.0 compatible socket
  DIMENSIONI E PESO
• NetWeight: 123g
• Unboxed: 68mm x 25mm x 68mm (W x H x D)

Requisiti minimi di sistema

• Windows: XP (service pack 3), Vista, 7 (32 and 64-bit)
• Mac: OS X 10.5 Leopard (Intel only), OS X 10.6 Snow Leopard
