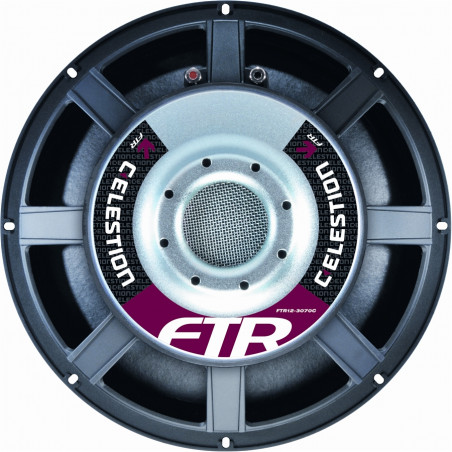

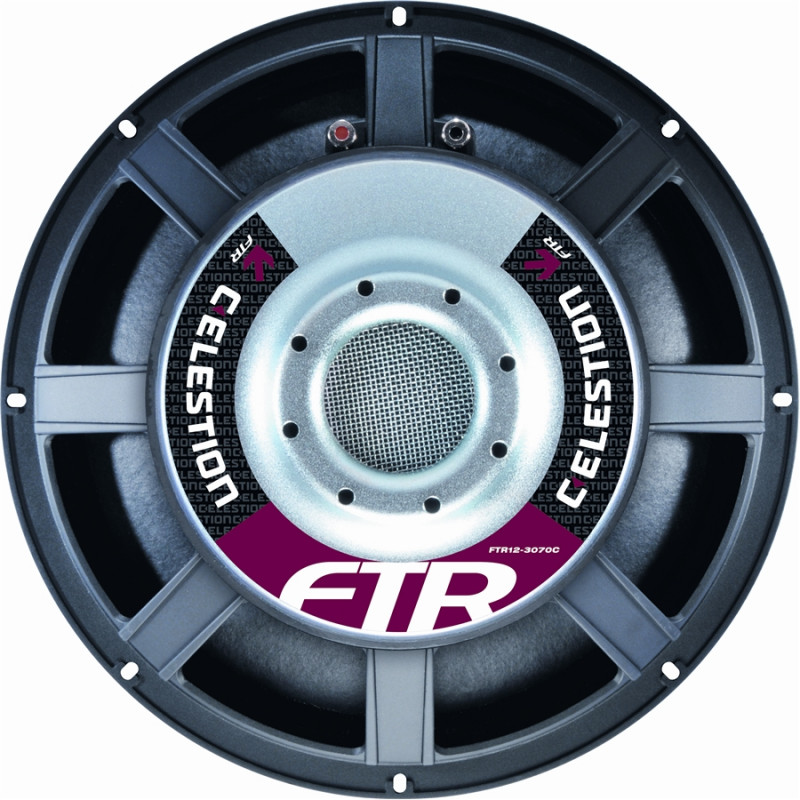

FTR12-3070C 350W 8ohm LF Ferrite

Caratteristiche

- 12" ferrite mid/bass driver provides 350Wrms (AES standard) power handling and 96dB sensitivity

- 3" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss due to thermal compression

- Low frequency response, down to 40Hz

- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion

- Specially treated weather-resistant cone

Specifiche Generali

Nominal diameter: 305mm/12in

Power rating(1): 350Wrms

Continuous power rating(2): 700W

EIA power rating(3): 500W

Nominal impedance: 8ohm

Sensitivity(4): 96dB

Frequency range: 40-4000Hz

Voice coil diameter: 75mm/3in

Chassis type: Cast aluminium

Magnet type: Ferrite

Magnet weight: 2.3kg/81oz

Coil material: Round copper

Former material: Glass fibre

Cone material: Glass loaded paper with weather-resistant impregnation

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 3mm/0.12in

Gap depth: 10mm/0.40in

Voice coil winding width: 16mm/0.63in

Parametri di Thiele-Small

D: 0.26m/10.24in

Fs: 66.1Hz

Mms: 58.51g/2.07oz

Qms: 2.90

Qes: 0.375

Mmd: 51.59g/1.82oz

Qts: 0.332

Re: 5.44ohm

Vas: 39.57lt/1.40ft3

BI: 18.78Tm

Cms: 0.099mm/N

Rms: 8.374kg/s

Le (at 1kHz): 1.25mH

Informazioni di Montaggio

Overall diameter: 318mm/12.5in

Overall depth: 102mm/4.02in

Cut-out diameter: 286mm/11.26in

Mounting slot dimensions: 7.5mm x 6.5mm/0.3in x 0.26in

Number of mounting slots: 8

Mounting PCD range: 298-304mm/11.7-12.0in

Unit weight: 6.3kg/13.9lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
