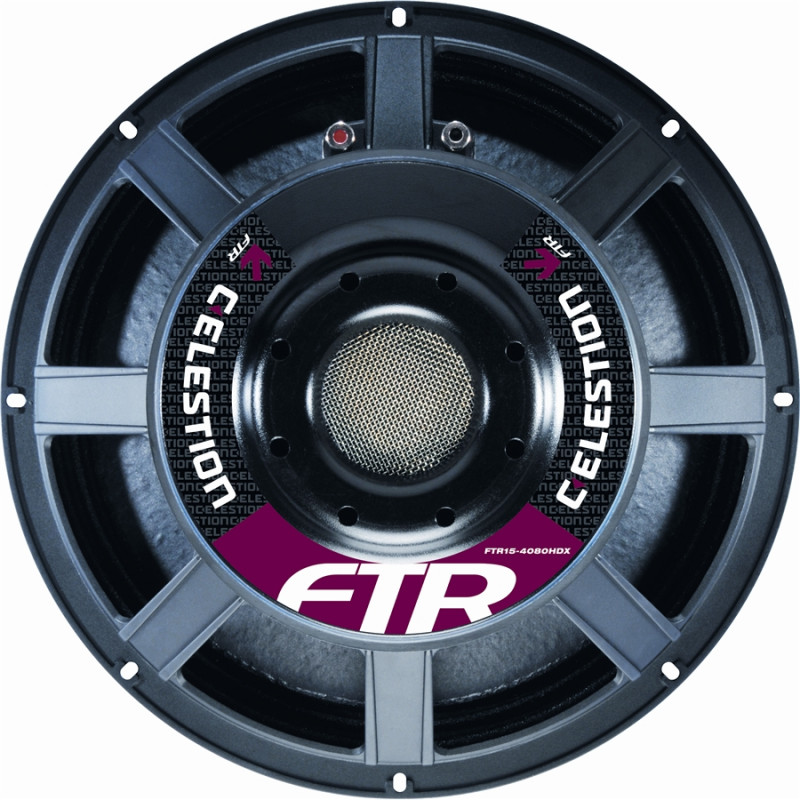

FTR15-4080HDX 1000W 8ohm LF Ferrite

Caratteristiche

- 15" ferrite woofer provides 1000Wrms (AES standard) power handling and a frequency response of 40Hz-2500Hz

- 4" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression

- Double suspension and a "multi-roll" surround provide exceptional linearity at extremes of cone excursion

- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion

- Less than 10kg - very low weight for this product class

Specifiche Generali

Nominal diameter: 381mm/15in

Power rating(1): 1000Wrms

Continuous power rating(2): 2000W

Nominal impedance: 8ohm

Sensitivity(3): 96dB

Frequency range: 40-2500Hz

Voice coil diameter: 100mm/4in

Chassis type: Cast aluminium

Magnet type: Ferrite

Magnet weight: 3.1kg/110oz

Coil material: Round copper

Former material: Glass fibre

Cone material: Glass loaded paper with weather-resistant impregnation

Surround material: Cloth-sealed

Suspension: Double

Xmax(4): 8mm/0.33in

Gap depth: 9.5mm/0.37in

Voice coil winding width: 25mm/0.99in

Parametri di Thiele-Small

D: 0.33m/12.99in

Fs: 40.5Hz

Mms: 153.53g/5.42oz

Qms: 3.98

Qes: 0.36

Mmd: 139.38g/4.92oz

Qts: 0.33

Re: 5.10ohm

Vas: 104.27lt/3.68ft3

BI: 23.53Tm

Cms: 0.10mm/N

Rms: 9.81kg/s

Le (at 1kHz): 1.8mH

Informazioni di Montaggio

Overall diameter: 385mm/15.16in

Overall depth: 180mm/7.1in

Cut-out diameter: 351mm/13.82in

Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in

Number of mounting slots: 8

Mounting PCD range: 365-375mm/14.37-14.76in

Unit weight: 9.7kg/21.3lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m in 2pi anechoic environment.

(4)Xmax derived from: (voice coil winding width-gap depth)/2.

(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
