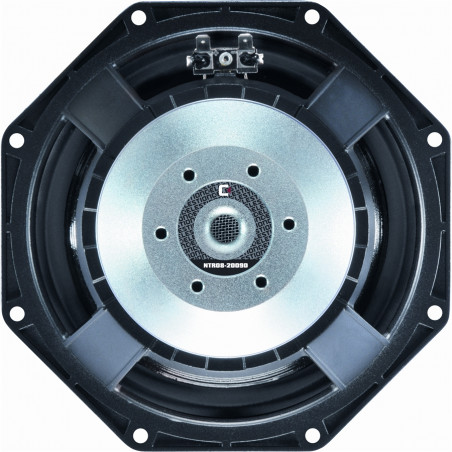

NTR08-2009D 200W 8ohm LF Neodimio

Caratteristiche

- 8" neodymium magnet driver providing 200Wrms (AES standard) power handling and 94.5dB sensitivity

- 2" edgewound copper voice coil

- Suitable for line array applications, utilizing a space-efficient octagonal chassis profile

- Copper sleeved pole reduces inductive rise for improved HF performance

- "M-roll" surround provides progressive excursion control, generating a smooth frequency response

- Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression

Specifiche Generali

Nominal diameter: 203mm/8in

Power rating(1): 200Wrms

Nominal impedance: 8ohm

Sensitivity(2): 94.5dB

Frequency range: 70-5000Hz

Voice coil diameter: 50mm/2in

Chassis type: Cast aluminium

Magnet type: Neodymium

Coil material: Flat copper

Former material: Glass fibre

Cone material: Kevlar loaded paper with weather-resistant coating

Surround material: Cloth-sealed

Suspension: Single

Xmax(3): 4mm/0.16in

Gap depth: 10mm/0.39in

Voice coil winding width: 18mm/0.67in

Parametri di Thiele-Small

D: 0.17m/6.69in

Fs: 64.3Hz

Mms: 32.21g/1.14oz

Qms: 2.063

Qes: 0.219

Mmd: 30.27g/1.07oz

Qts: 0.198

Re: 5.83ohm

Vas: 13.87lt/0.49ft3

BI: 18.56Tm

Cms: 0.19mm/N

Rms: 6.3kg/s

Le (at 1kHz): 0.51mH

Informazioni di Montaggio

Overall diameter: 225mm/8.8in

Overall depth: 100mm/4.16in

Cut-out diameter: 187mm/7.4in

Mounting slot dimensions: 5mm/0.26in

Number of mounting slots: 8

Mounting slot PCD range: 210/8.3

Unit weight: 2.8kg/6.16lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Measured on axis at 1W, 1m in 2pi anechoic environment.

(3)Xmax derived from: (voice coil winding width-gap depth)/2.

(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
