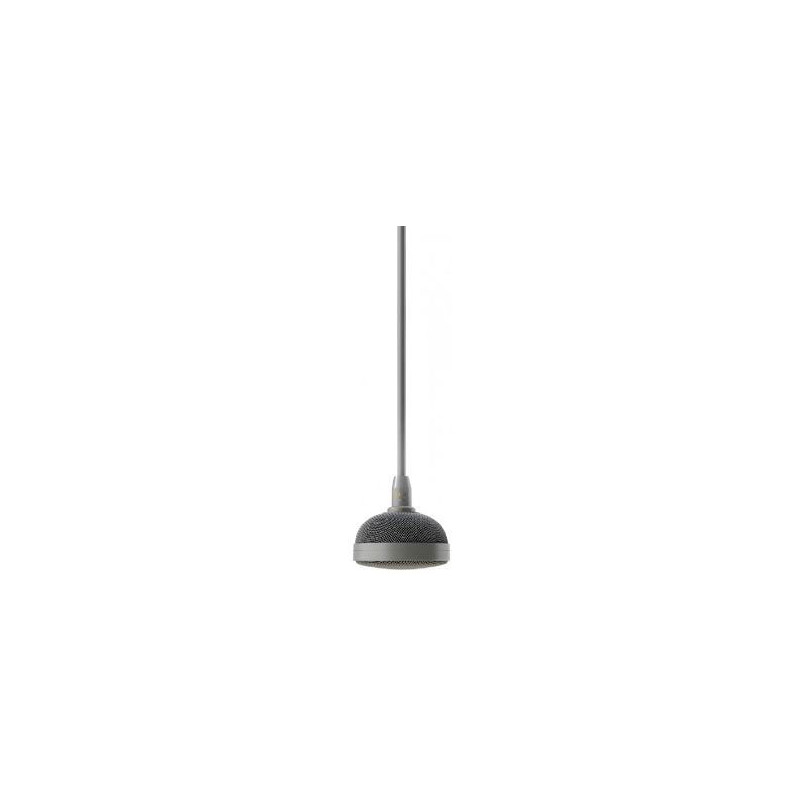

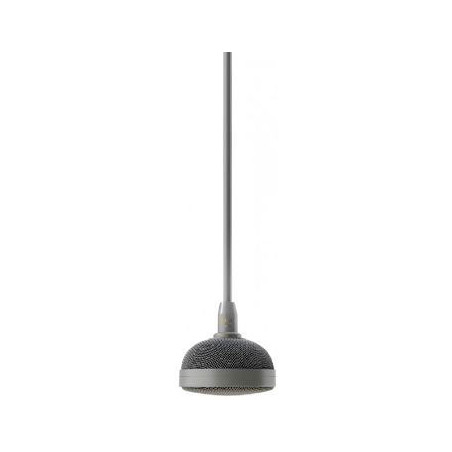

M3 WHITE

Il M3W (Grigio - Grey) è un innovativo microfono a soffitto a tre elementi, progettato per applicazioni dove l'estetica, la qualità del suono e la facilità d'installazione sono fondamentali. L'M3 è una soluzione ideale per la cattura audio per la videoconferenza, l'apprendimento a distanza, le attività in sala e leprocedure chirurgiche. Può anche essere utilizzato per la messa a punto e la sorveglianza dell'ambiente

The M3 ceiling microphone incorporates three phase coherent hypercardioid capsuleswith tailored frequency response optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans, and heating /air conditioning. Low noise preamp circuitry is employed for highest possible signal to noise and studio quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal.

The M3 installed ceiling microphone connects to the input of amixer or dsp console via a breakout cable (provided). The breakout cable consists of a female RJ45 connector that terminates in either three terminalblock or XLR connectors. A variety of optional shielded CAT7 cable lengths (from plenum rated junction box to break out cable) are available.

Installing the M3 requires drilling just one5/8-inch hole in the ceiling, with no additional tools needed. The M3 mounting hardware easily adjusts the cable hanging height up to four feet from the ceiling surface without removing ceiling tiles. A wire safety cable provides additional seismic restraint.

FEATURES:

100% RF shielding and immunity

Gold diaphragm condenser capsules with studio quality sound

Low impedance design allows for extremely long cable runs (if required) without crosstalk or interference

Frequency and pattern tailored for voice clarity and rejection of extraneous noise

Evenly dispersed sound with undetectable phase

High-quality silicone jacketed microphone cable with adjustable length and position

Plenum rated junction box with RJ45 connector

All visible components of the microphone and cable are same color: charcoal or white

TAA compliant

Very high output, low self-noise

Easy to install

Applications

Zone Capture

Video Conferencing

Distance Learning

Hospitaland medical procedure

Courtroom

Ambient room miking

http://www.audixusa.com/docs_12/specs_pdf/M3_v2_0516.pdf
