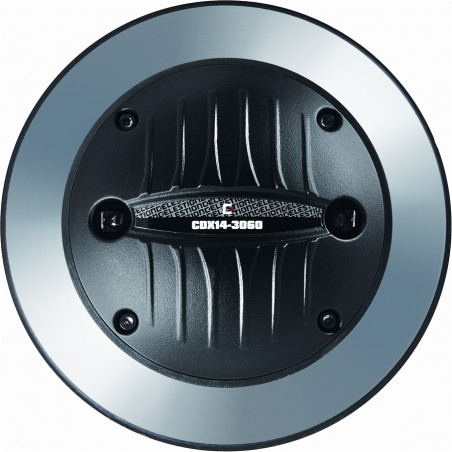

CDX14-3060 75W 8ohm HF Ferrite

Caratteristiche

- 1.4" exit, ferrite magnet, 3" voice coil compression driver provides 75Wrms (AES standard) power handling and 106.5dB sensitivity

- Patented phase plug design method suppresses cavity resonances at higher frequencies

- Titanium diaphragm, deep drawn to increase stiffness and reduce distortion

- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

- Rolled polyimide surround improves stiffness control, further lowering distortion

- Curved coherent wavefront, optimised for horn loading

Specifiche Generali

Power rating(1): 75Wrms

Continuous power rating(2): 150W

Nominal impedance: 8ohm

Frequency range: 500-18000

Sensitivity(3): 106.5dB

Recommended min. crossover (12dB/oct): 1000Hz 12dB/oct

Voice coil diameter: 75mm/3in

Voice coil material: Edgewound Copper Clad Aluminium

Magnet type: Ferrite

Diaphragm material: Titanium

Surround material: Polyimide

Informazioni di Montaggio

Width: 180mm/7.0in

Depth: 71mm/2.8in

Weight: 4.88kg

Fitting: Flange (4 x M6 holes on a 102mm/4in PCD)

Throat exit: 35.6mm/1.4in

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
