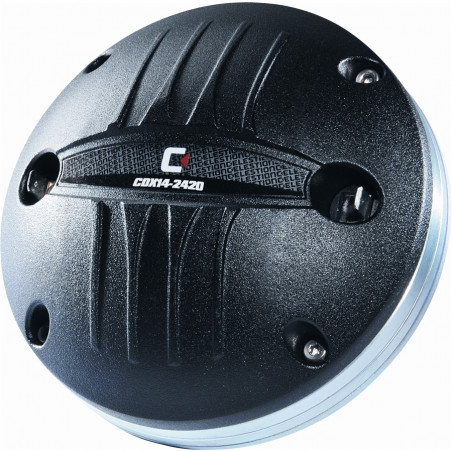

CDX14-2420 70W 8ohm HF Neodimio

Caratteristiche

- 1.4" exit, neodymium magnet, 60mm (2.4") voice coil compression driver provides 70Wrms (AES standard) power handling and 106.5dB sensitivity

- Patented phase plug design method suppresses cavity resonances at higher frequencies

- Titanium diaphragm, deep drawn to increase stiffness and reduce distortion

- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

- Rolled polyimide surround improves stiffness control, further lowering distortion

- Curved coherent wavefront, optimised for horn loading

Specifiche Generali

Power rating(1): 70Wrms

Continuous power rating(2): 140W

Nominal impedance: 8ohm

Sensitivity(3): 106.5dB

Frequency range: 800-20,000Hz

Recommended min. crossover (12dB/oct): 1200Hz

Voice coil diameter: 60mm/2.4in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Neodymium

Diaphragm material: Titanium

Surround material: Polyimide

Informazioni di Montaggio

Maximum width: 116mm/4.6in

Depth: 56mm/2.2in

Weight: 1.5kg/3.3lb

Fitting: Flange (4 x M6 holes on 102mm/4in PCD)

Throat exit: 35.6mm/1.4in

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
