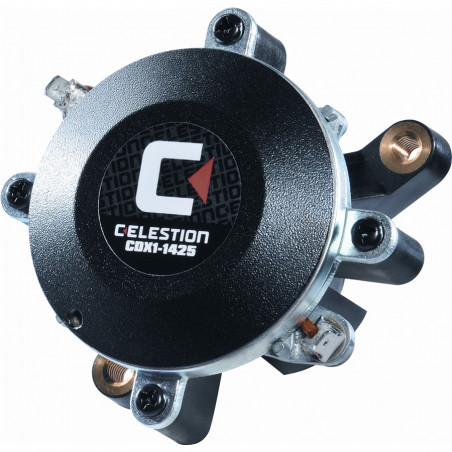

CDX1-1425 25W 8ohm HF Neodimio

Caratteristiche

- 1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil

- 25Wrms power handling (AES standard) and 108dB sensitivity

- Copper sleeve on pole reduces inductive rise for improved HF performance

- Ferrofluid in magnet gap prevents sensitivity loss through thermal compression

- Aluminium diaphragm combined with elastomer surround delivers lower distortion performance

- Finite Element Analysis (FEA) used to optimise both magnet and acoustic design

- Suitable for 2-way and 3-way systems, and line arrays

Specifiche Generali

Power rating(1): 25Wrms

Continuous power rating(2): 50W

Nominal impedance: 8ohm

Sensitivity(3): 108dB

Frequency range: 2000-20,000Hz

Recommended min. crossover (12dB/oct): 2500Hz

Voice coil diameter: 35mm/1.4in

Voice coil material: Copper clad aluminium

Magnet type: Neodymium

Diaphragm material: Aluminium

Surround material: Elastomer

Informazioni di Montaggio

Maximum width: 90mm/3.5in

Depth: 58mm/2.3in

Weight: 0.39kg/0.9lb

Fitting: Flange (2 x M6 holes on 76mm, 3.0in PCD)

Throat exit: 25.4mm/1in

Trombe Compatibili

H1-9040P, H1-7050 "No Bell"

Note

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
