LD SYSTEMS U508HHC2 SISTEMA DUAL RADIOMIC A MANO CONDENS.

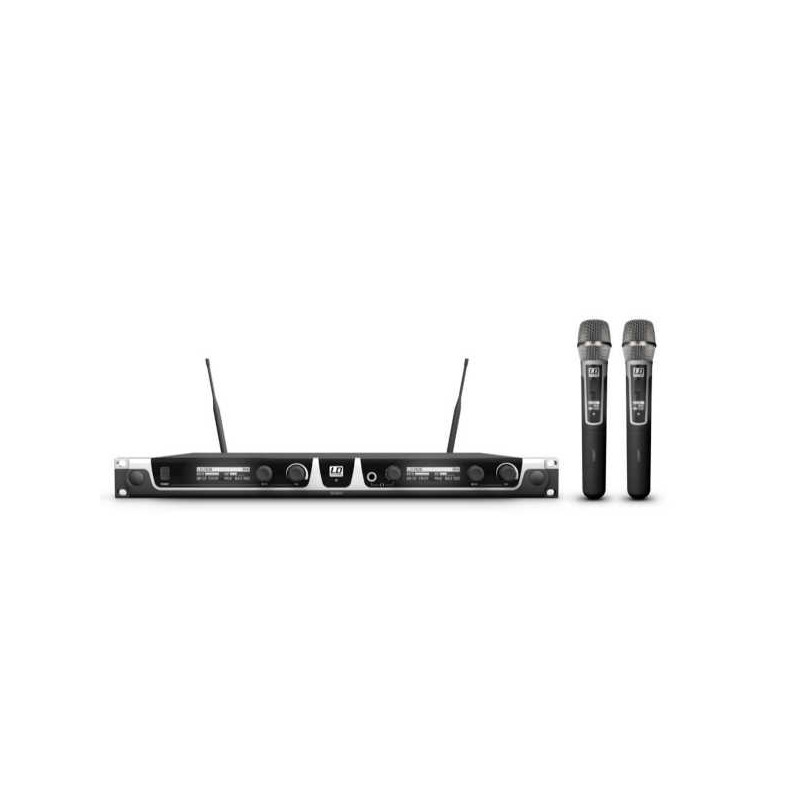

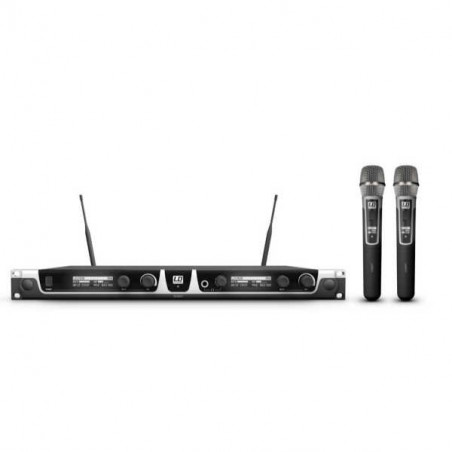

LD Systems U508 HHC2 - Wireless Microphone System with 2 x Condenser Handheld Microphone
Set composto da : 2 x LDU508MC trasm. a mano + 1 x LDU508R2 ricevitore diversity

Overview of frequency ranges of vocal sets:
U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously

CARATTERISTICHE TECNICHE :

Model name: LDU508MC
Product type: Handheld microphone transmitter
Radio frequency range: 823 - 832 and 863 - 865 MHz
Channels: 96 (8 groups of 12 channels)
Microphone type: condenser
Directional characteristic: cardioid
Audio frequency response: 60 Hz - 16 kHz
RF output: Variable (10, 30, 50 mW)
Controls: Power On/Off
Indicators: LC display
Power supply: 2 x 1.5 V AA
Operating time: up to 13 hrs., battery-dependent
Length: 252 mm
Diameter: 50 mm

Model name: LDU508R2
Product type: Dual Receiver
Type: True Diversity
Radio frequency range: 823 - 832 and 863 - 865 MHz
Channels: 2 x 96 (8 groups of 12 channels)
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 Hz - 16 kHz
Noise suppression: Squelch
THD: < 0.1 %
S/N ratio: > 100 dB
Unbalanced audio output: 2 x XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
Controls: Power On/Off, Set, Up, Down, ASC
Indicators: OLED display, 2 x 6-segment RF (A/B), antenna active (A/B), 7-segment AF
Power supply: 12 - 18 V DC
Width: 483 mm
Height: 44 mm
Depth: 190 mm
