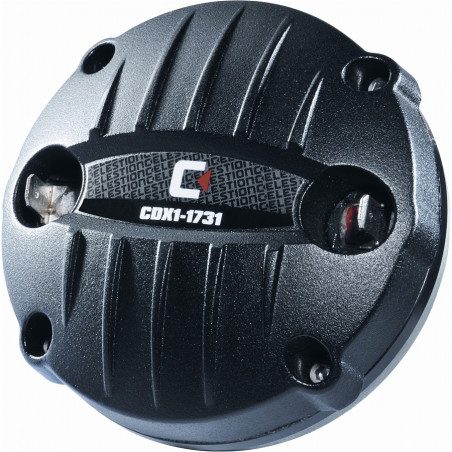

CDX1-1731 40W 8ohm HF Neodimio

Caratteristiche

- 1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil

- 40Wrms (AES standard) power handling and 110dB sensitivity

- Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion

- One piece PETP film diaphragm and surround

- Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver

Specifiche Generali

Power rating(1): 40Wrms

Continuous power rating(2): 80W

Nominal impedance: 8ohm

Sensitivity(3): 110dB

Frequency range: 1200-20,000Hz

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 44mm/1.75in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Neodymium

Diaphragm material: PETP film

Surround material: PETP film

Informazioni di Montaggio

Maximum width: 88.5mm/3.48in

Minimum width: 82.0mm/3.23in

Depth: 57mm/2.3in

Weight: 0.65kg/1.4lb

Fitting: Screw (35mm, 1.38in dia)

Throat exit: 25.4mm/1in

Trombe Compatibili

H1SC-9040, H1SC-7050

Note

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
