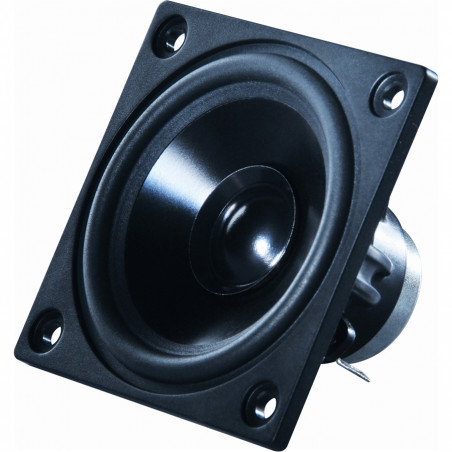

AN2775 20W 8ohm Compact Full Range

Voglia di audio Fai da Te? Per il progetto di un Line-Array compatto Bass Reflex/Front Horn, clicca qui

Design curato, collaudato e messo a disposizione direttamente da Celestion

Per stampare la scheda prodotto, clicca qui

Per una panoramica su tutta la serie Celestion Compact Full Range, clicca qui

Per consultare e scaricare la brochure originale Celestion Pro Audio, clicca qui

Caratteristiche

- Compact and lightweight, full-range neodymium loudspeakers

- Advanced Finite Element Analysis techniques used for acoustic, mechanical and electromagnetic modelling

- Ideal for applications such as portable line arrays where actively controlled wavefront (beam steering) is used

- Delivers wider dispersion to higher frequencies than many equivalent compact, full-range drivers on the market

- Chassis purpose-designed for maximum free air movement, with square mounting frame to facilitate close coupling of multiple units

- Stiff and light aluminium cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band

- Half roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion

- Designed to be weather resistant for outdoor applications

Specifiche Generali

Nominal diameter: 70mm/2.75in

Power rating(1): 20Wrms

Nominal impedance: 8ohm

Sensitivity(2): 84dB

Frequency range: 160Hz-20kHz

Voice coil diameter: 20mm/0.75in

Chassis type: Glass reinforced ABS

Magnet type: Neodymium

Voice coil material: Round Copper

Former material: Polyimide

Cone material: Aluminium

Surround material: Elastomer

Xmax(3): 1.5mm/0.06in

Gap depth: 3mm/0.12in

Voice coil winding width: 6mm/0.24in

Parametri di Thiele-Small

D: 60mm/2.36in

Sd: 28.27cm2/4.38in2

Fs: 150Hz

Mms: 1.83g/0.06oz

Qms: 12.21

Qes: 1.67

Qts: 1.47

Re: 5.20ohm

Vas: 0.58lt/0.020ft3

BI: 2.43Tm

Cms: 0.51mm/N

Informazioni di Montaggio

Overall depth: 45mm/1.8in

Overall size: 71.3 x 71.3mm/2.8in x 2.8in

Cut-out diameter: 66.1mm/2.6in

Fitting: 4 x M4 holes

Mounting PCD range: Ø82mm/3.2in

Unit weight: 100g/3.53oz

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Measured on axis at 1W, 1m in 2pi anechoic environment.

(3)Xmax derived from: (voice coil winding width-gap depth)/2.
