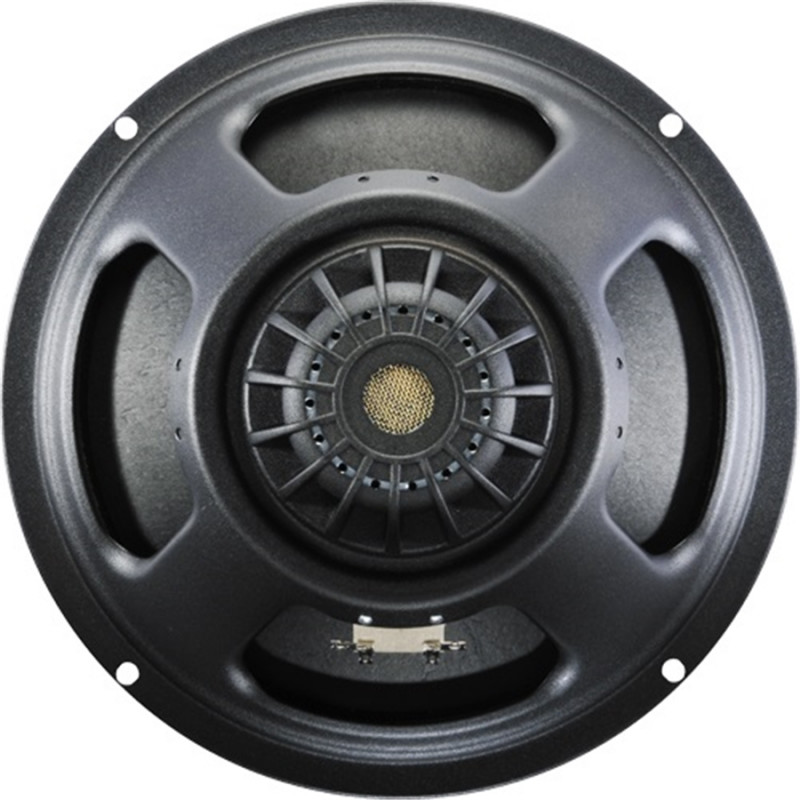

TN1530 300W 8ohm LF Neodimio

Caratteristiche

- Compact, high flux, Dual Magnet Motor design

- Vented cast aluminium heatsink

Specifiche Generali

Nominal diameter: 381mm/15in

Power rating(1): 300Wrms

Continuous power rating(2): 600W

Sensitivity(2): 98dB

EIA power rating(3): 450W

Nominal impedance: 8ohm

Sensitivity(4): 98db

Frequency range: 40-3,000Hz

Voice coil diameter: 75mm/3in

Chassis type: Pressed steel

Magnet type: Neodymium

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(3): 3.75mm/0.148in

Gap depth: 10mm/0.39in

Voice coil winding width: 17.5mm/0.69in

Parametri di Thiele-Small

D: 0.33m/12.99in

Fs: 42.5Hz

Mms: 92.58g/3.27oz

Qms: 2.619

Qes: 0.358

Mmd: 84.85g/2.99oz

Qts: 0.315

Re: 5.38ohm

Vas: 156.55lt/5.53ft3

BI: 19.29Tm

Cms: 0.15mm/N

Rms: 9.45kg/s

Le (at 1kHz): 1.11mH

Informazioni di Montaggio

Overall diameter: 385mm/15.16in

Overall depth: 160mm/6.30in

Cut-out diameter: 352mm/13.86in

Mounting slot dimensions: 9.2mm x 6.2mm/0.36in x 0.24in

Number of mounting slots: 8

Mounting PCD range: 369mm/14.53in

Unit weight: 2.8kg/6.2lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.

Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Rating is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W, 1m in 2pi anechoic environment.

(4)Xmax derived from: (voice coil winding width-gap depth)/2.

(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
